One-Step Stain Free PAGE Gel Rapid Preparation Kit
This product is designed for the rapid preparation of polyacrylamide gels using a standard Tris-glycine running buffer system. Protein bands can be visualized immediately upon exposure to UV light at 302 nm. Read more
Transport at room temperature and store at 4°C. The enhanced catalyst is stored at -20°C and has a shelf life of 18 months.
This product is designed for the rapid preparation of polyacrylamide gels using a standard Tris-glycine running buffer system. Protein bands can be visualized immediately upon exposure to UV light at 302 nm.
The kit contains a pre-mixed formula for both the upper and lower gels. After pouring the lower gel, the upper gel can be directly poured between the glass plates without waiting for polymerization. The upper gel cast by this kit is colored (red, blue, or green) to facilitate easy sample loading. Instead of TEMED, this kit provides an odorless catalyst that induces gel polymerization within 15-30 minutes at room temperature. The gel cast by this kit can be used for both denaturing and native PAGE electrophoresis.
KEY FEATURES
Colorful Upper Gels Easy sample loading.
Stain Free Protein bands can be observed after electrophoresis and transfer without additional staining.
Environmentally Friendly No TEMED is used.

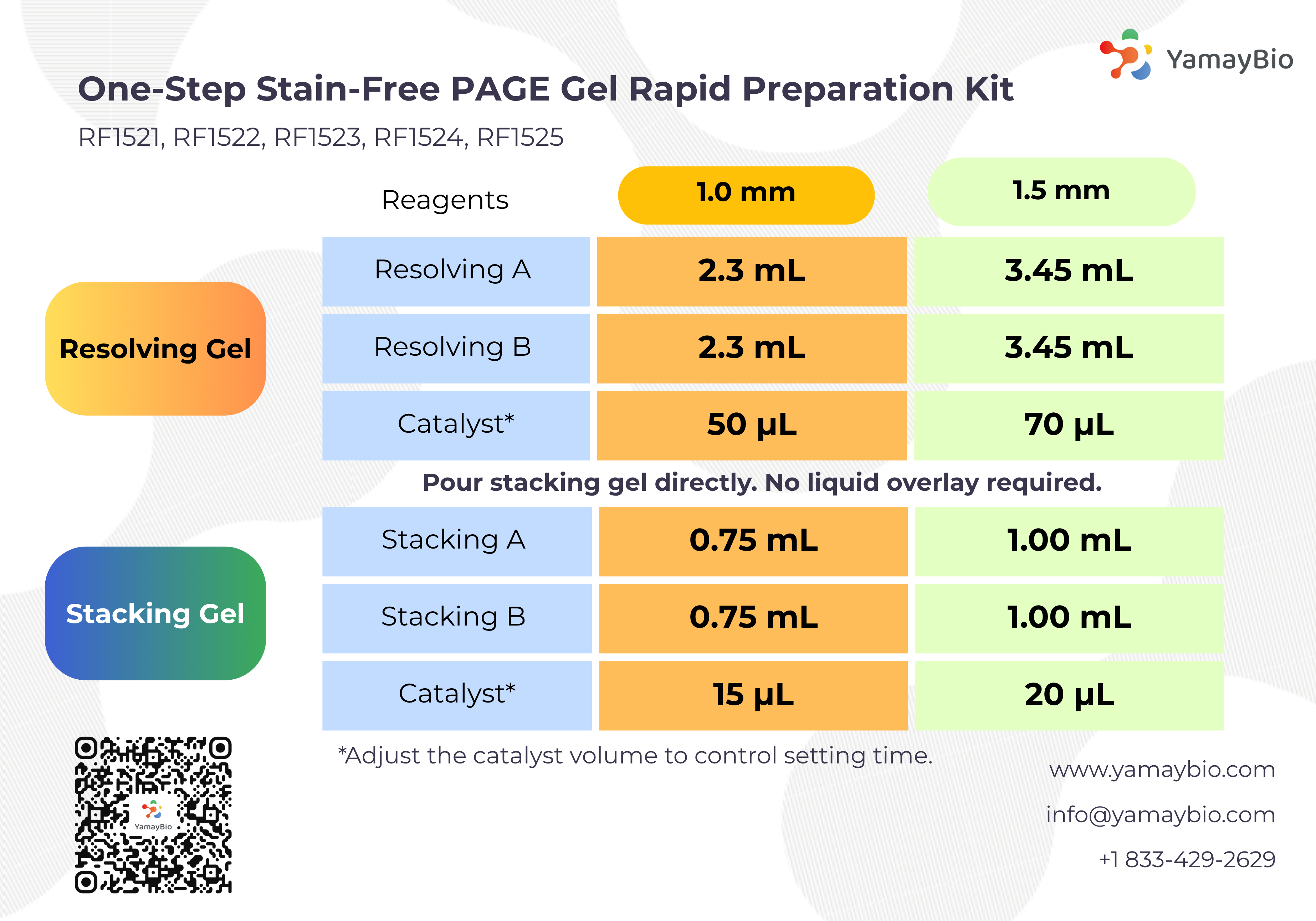

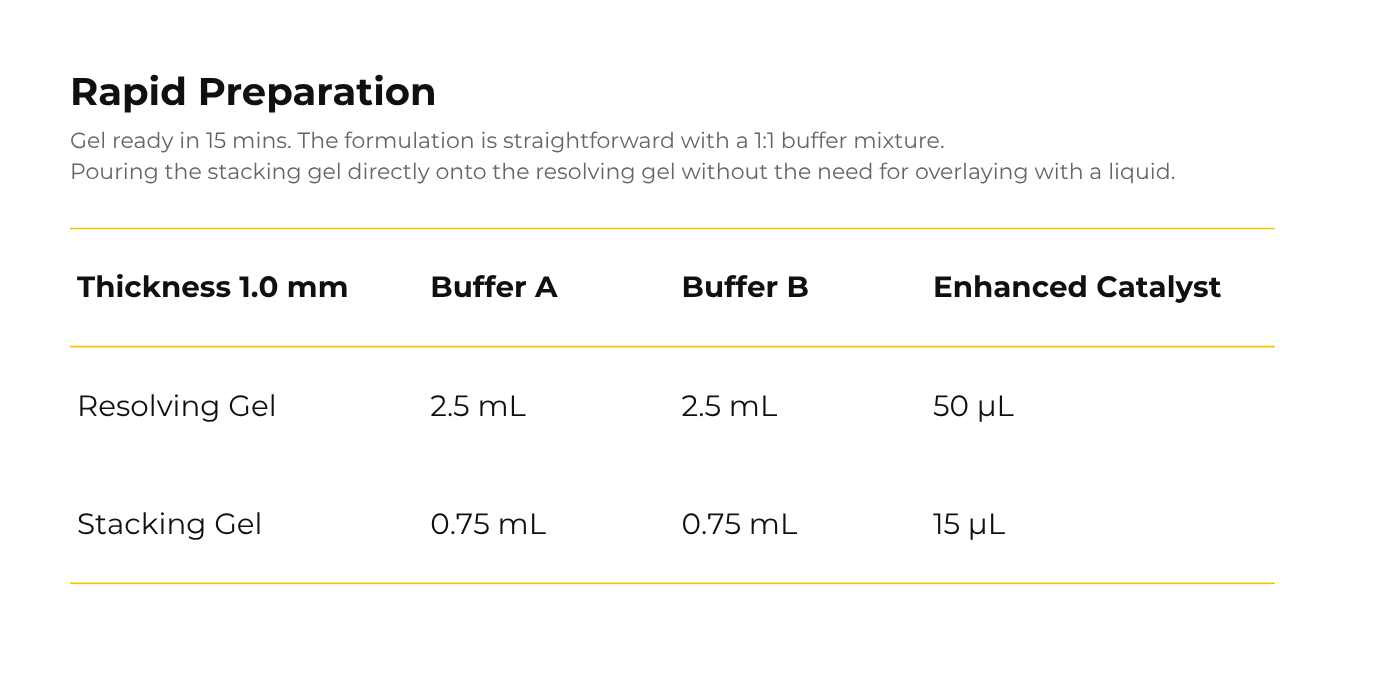

Rapid Preparation
Gel ready in 15 mins. The formulation is straightforward with a 1:1 buffer mixture.
Pouring the stacking gel directly onto the resolving gel without the need for overlaying with a liquid.
Schematic diagram of a Tricolor Prestained Protein Ladder (10kDa-250kDa, Orange, Green & Blue) (Cat. No.: YamayBio CY5466) in SDS-PAGE gels with different concentrations of Tris-Glycine.
Related Products
Protein Electrophoresis
Fast-dissolving Dual-color Protein Loading Buffer (Denaturing, Reducing, 5×)
Product Code: GB4353
Protein Electrophoresis
Stain Free Gradient-like PAGE Gel Kit
Product Code: RF1541
Protein Electrophoresis
Stain Free Bis-Tris Precast Gels
Product Code: AN9321
Protein Electrophoresis
All-in-One Low Range Protein Gel Kit
Product Code: RF1531
Protein Electrophoresis
Protein Sample Loading Buffer (Denaturing, non-Reducing, 5×)
Product Code: GB4354
Protein Electrophoresis
Tricolor Prestained Protein Ladder 10 kDa~180 kDa (Orange, Green & Blue)
Product Code: CY5463
Protein Electrophoresis
Tricolor Prestained Protein Ladder 10 kDa~250 kDa (Orange, Green & Blue)
Product Code: CY5466
Certificate of Analysis
Batch number
Certificate type
Date
Catalog Number(s)
Controls
Safety Data Sheet
Specifications
| Application | Western Blot ; SDS PAGE |
| Gel Percentage | 6%, 7.5%, 10%, 12.5%, 15% |
| Shelf Life | 12 Months |
| Shipping Condition | Room Temperature |
| Storage Requirements | 4°C.; the enhanced catalyst is stored at -20°C |
| Quantity | 100 Assays ( 1.0 mm gel ) |
