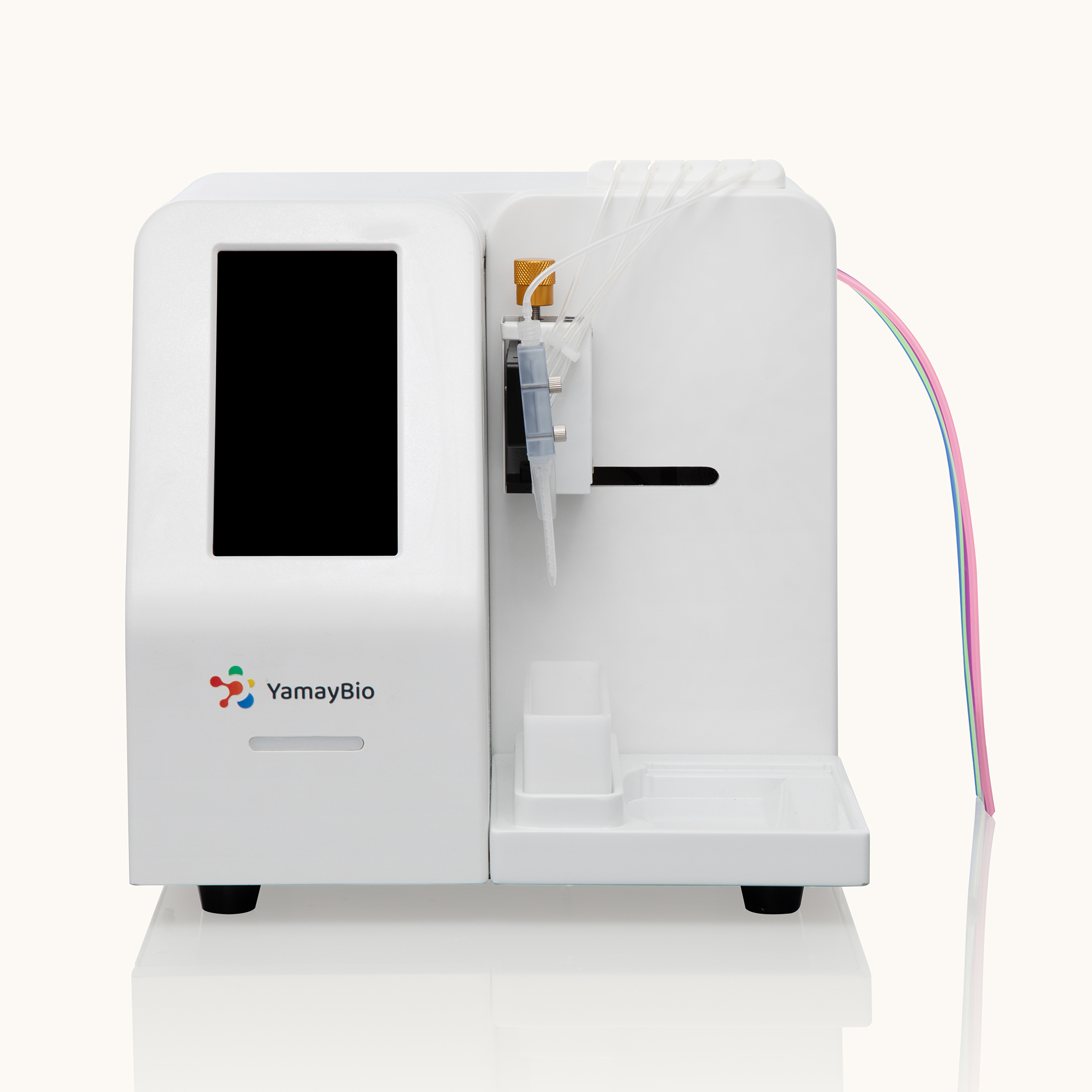

GelMaster46 Gel Casting System
The GelMaster46 Gel Casting System delivers fast, reproducible PAGE gel preparation for protein electrophoresis applications. Designed for high-throughput research environments, it minimizes variability associated with manual casting while saving time through automated reagent pre-dispensing and solution delivery. Read more
Interested in this product? Contact us for a demo, pricing, and more information.
The GelMaster46 Gel Casting System delivers fast, reproducible PAGE gel preparation for protein electrophoresis applications. Designed for high-throughput research environments, it minimizes variability associated with manual casting while saving time through automated reagent pre-dispensing and solution delivery.
KEY FEATURES
Ultra-Fast Gel Casting
Affordable High-Throughput Workflow
Customizable Gel Formats
Higher Casting Stability
Easy-To-Use Interface
Safe and Non-Toxic Reagents
Ultra-Fast Gel Casting

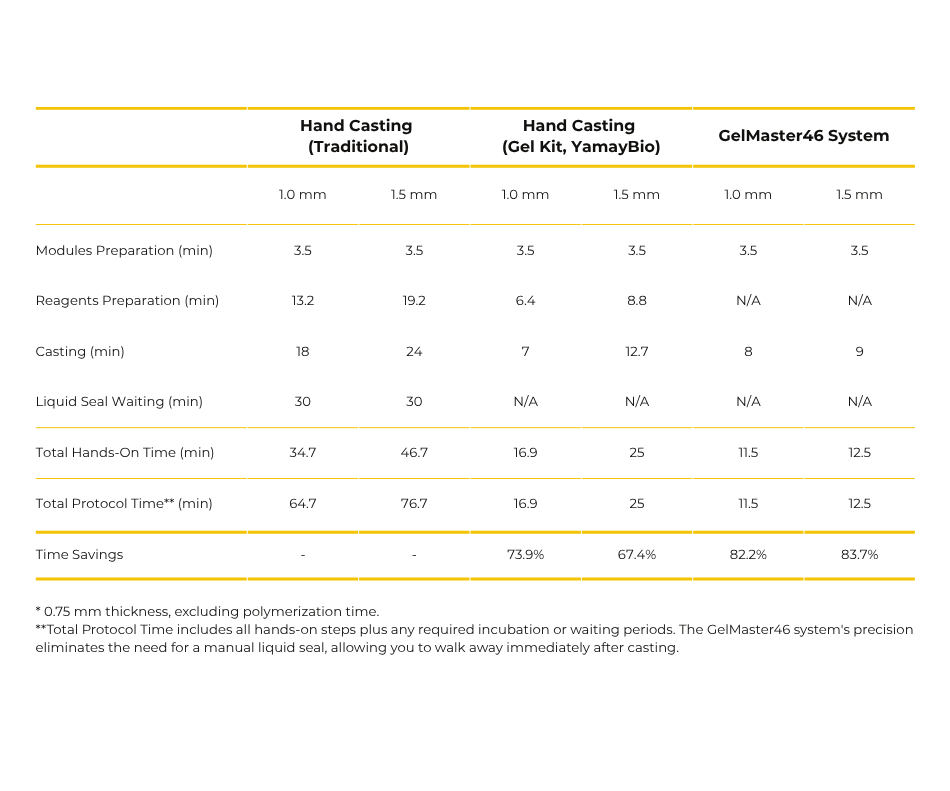

Cast a PAGE gel in as little as 46 seconds*. Estimated saving time is 9 hours/100 gels.Table 1: Hands-On Time Expenditure (10 Gels)
* 0.75 mm thickness, excluding polymerization time.
**Total Protocol Time includes all hands-on steps plus any required incubation or waiting periods. The GelMaster46 system's precision eliminates the need for a manual liquid seal, allowing you to walk away immediately after casting.
Affordable High-Throughput Workflow

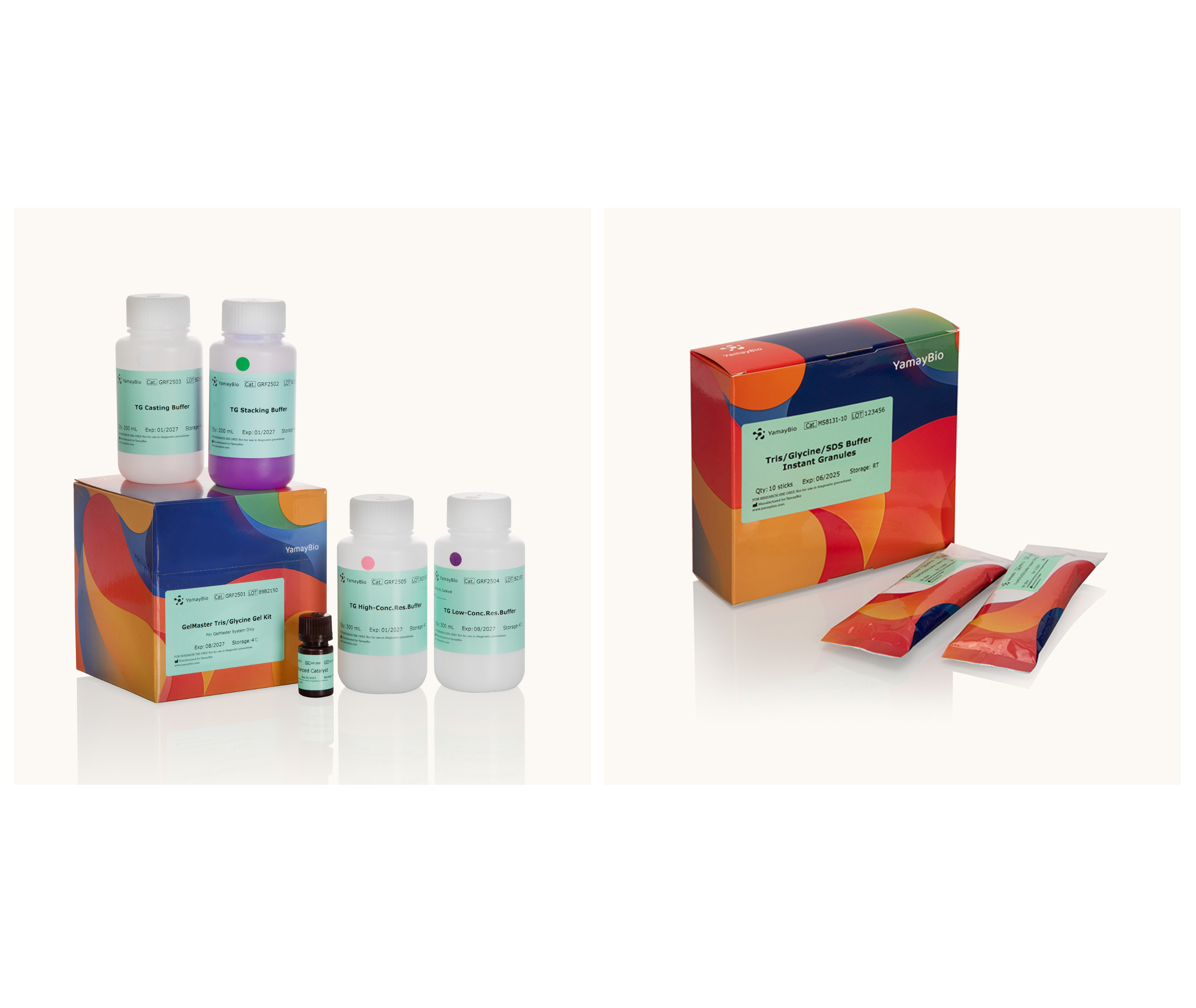

At approximately $2.00 per gel when using the system's dedicated reagent kit, this system offers significant long-term savings compared to using precast gels.
Customizable Gel Formats

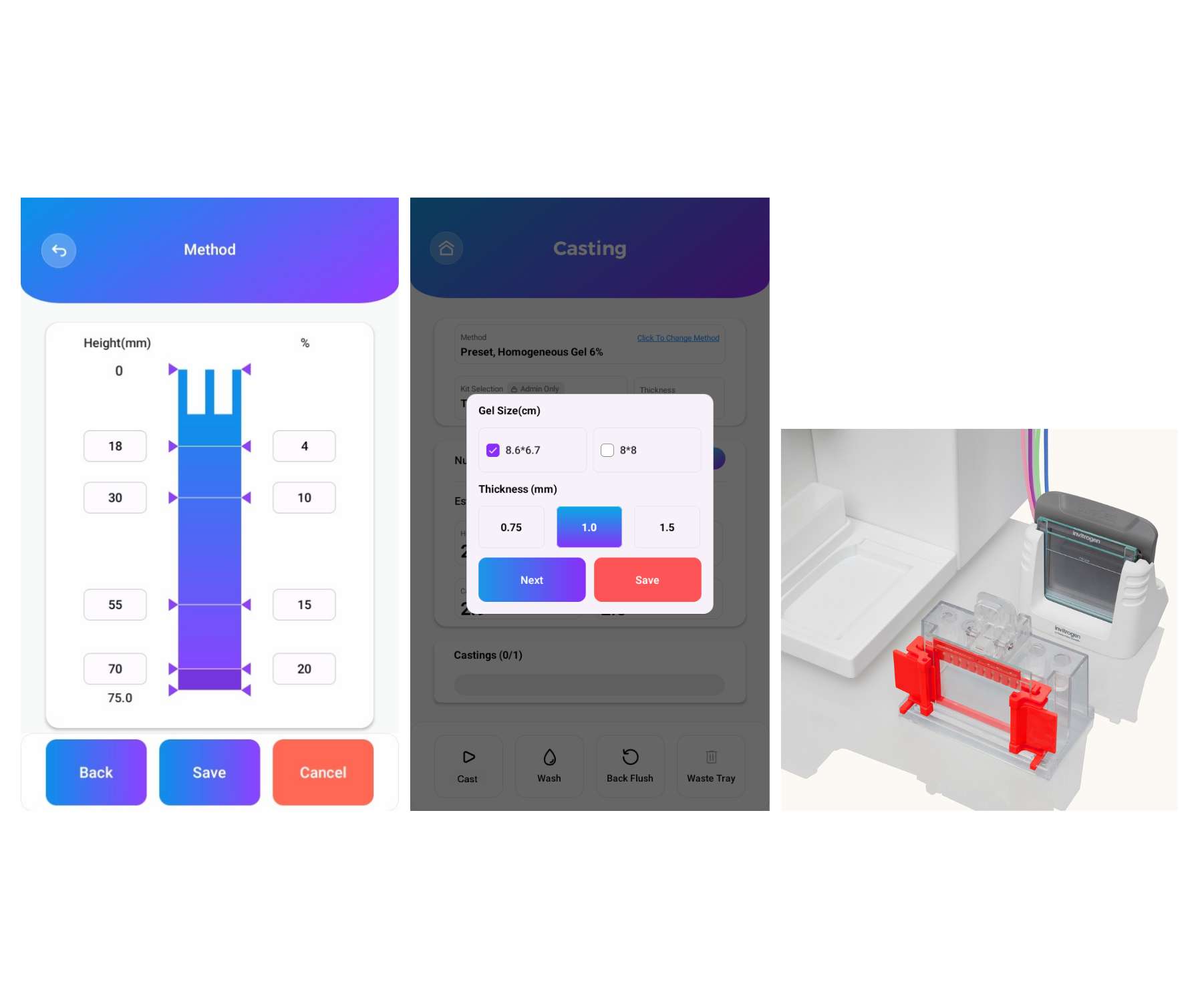

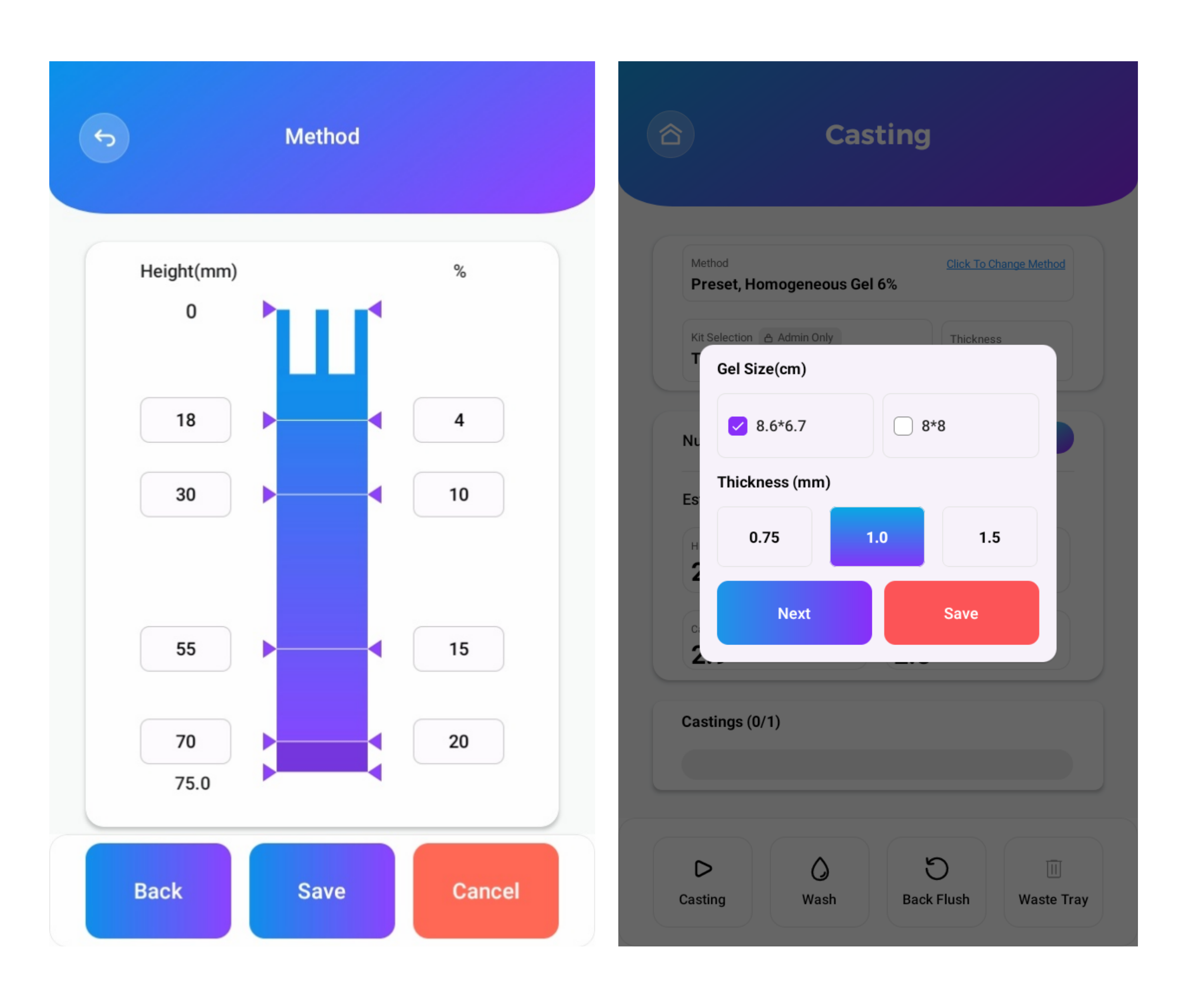

· Adjustable gel percentage, thickness, and casting quality· Supports homogeneous gels, gradient gels, and step gradient gels
· Compatible with industry-standard gel cassettes from major brands
Higher Casting Stability

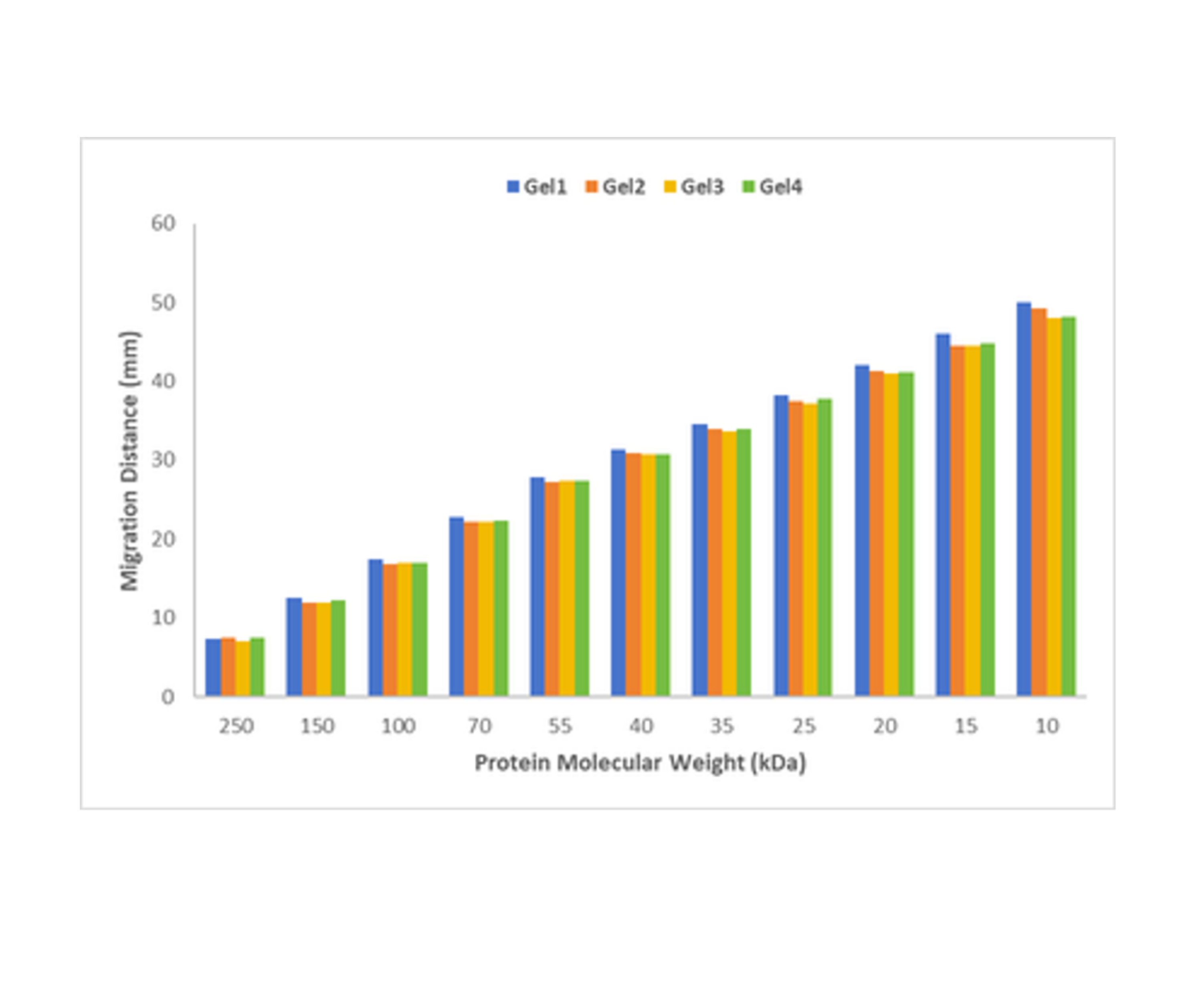

Precise reagent delivery ensures a uniform gel matrix, delivering excellent band resolution & highly reproducible Western blot results.Four consecutive 4–20% gradient gels, each prepared using the GelMaster46 and run in Tris-Glycine-SDS buffer at 160V for 60min, show exceptional casting consistency.
Easy-To-Use Interface

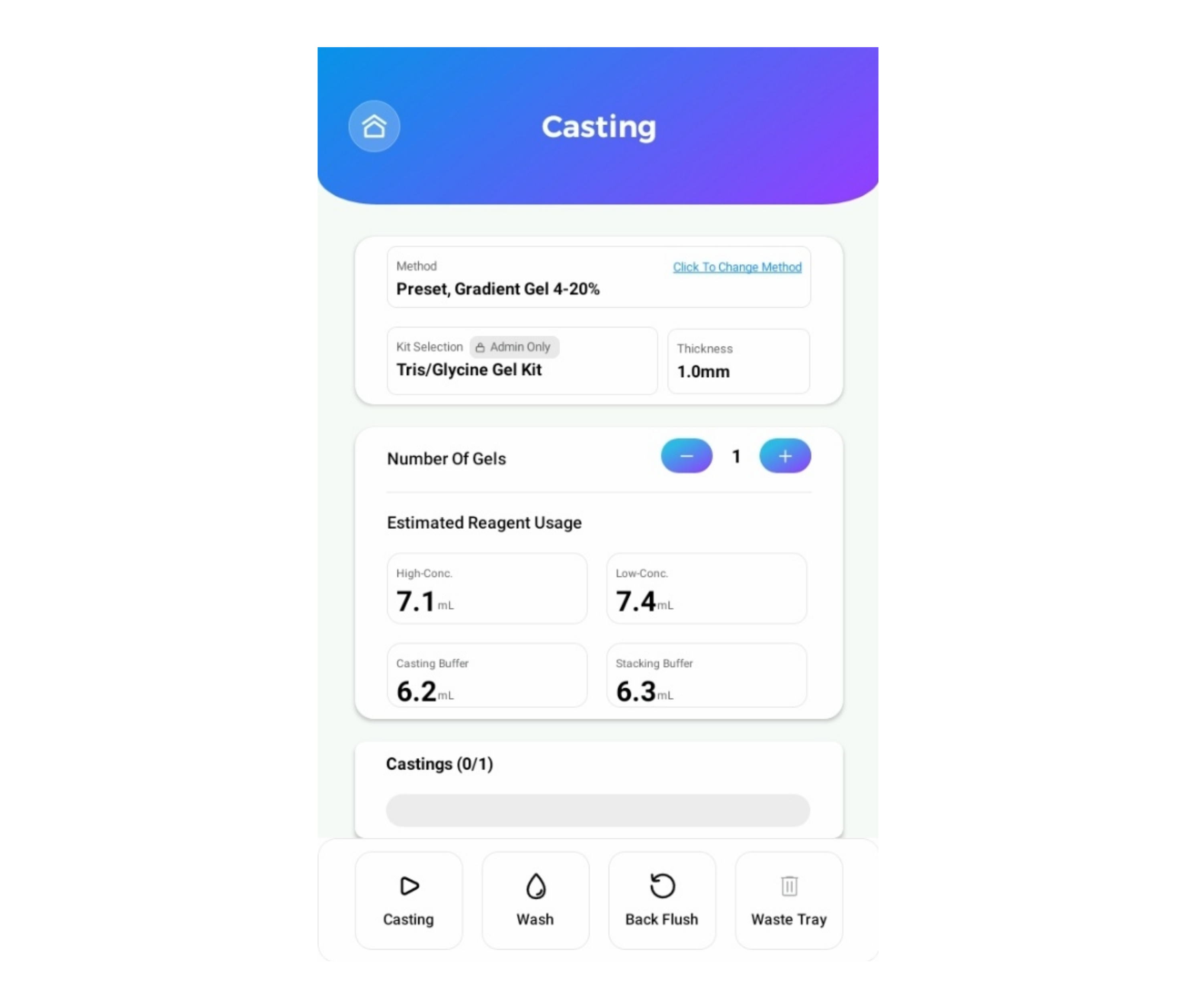

An intuitive touchscreen interface provides guided operation, allowing fast setup with minimal user training.
Safe and Non-Toxic Reagents
Formulated without hazardous components, such as neurotoxic acrylamide dust, ensuring safe handling and reduced environmental impact.
Specifications
| Dimensions (W x D x H) | 330 x 350 x 320 mm (13.0 x 13.8 x 12.6 in) |
| Weight | ≤ 15 kg (33.1 lbs) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Gel Casting Time | ≤ 1.5 min per gel |
| Gel Percentage Range | 0%–20% |
| Gel Thickness | 0.75 mm, 1.00 mm, 1.50 mm |
| Gel Types | Homogeneous Gel, Gradient Gel, Step Gradient Gel |
| Number of Gradient Layers | ≤ 7 layers |
| Dispensing Accuracy | CV ≤ 5% |
| Operating Temperature | 10–30 °C |
| Operating Humidity | 20-85% |
| Operating Pressure | 80-106 kPa |
