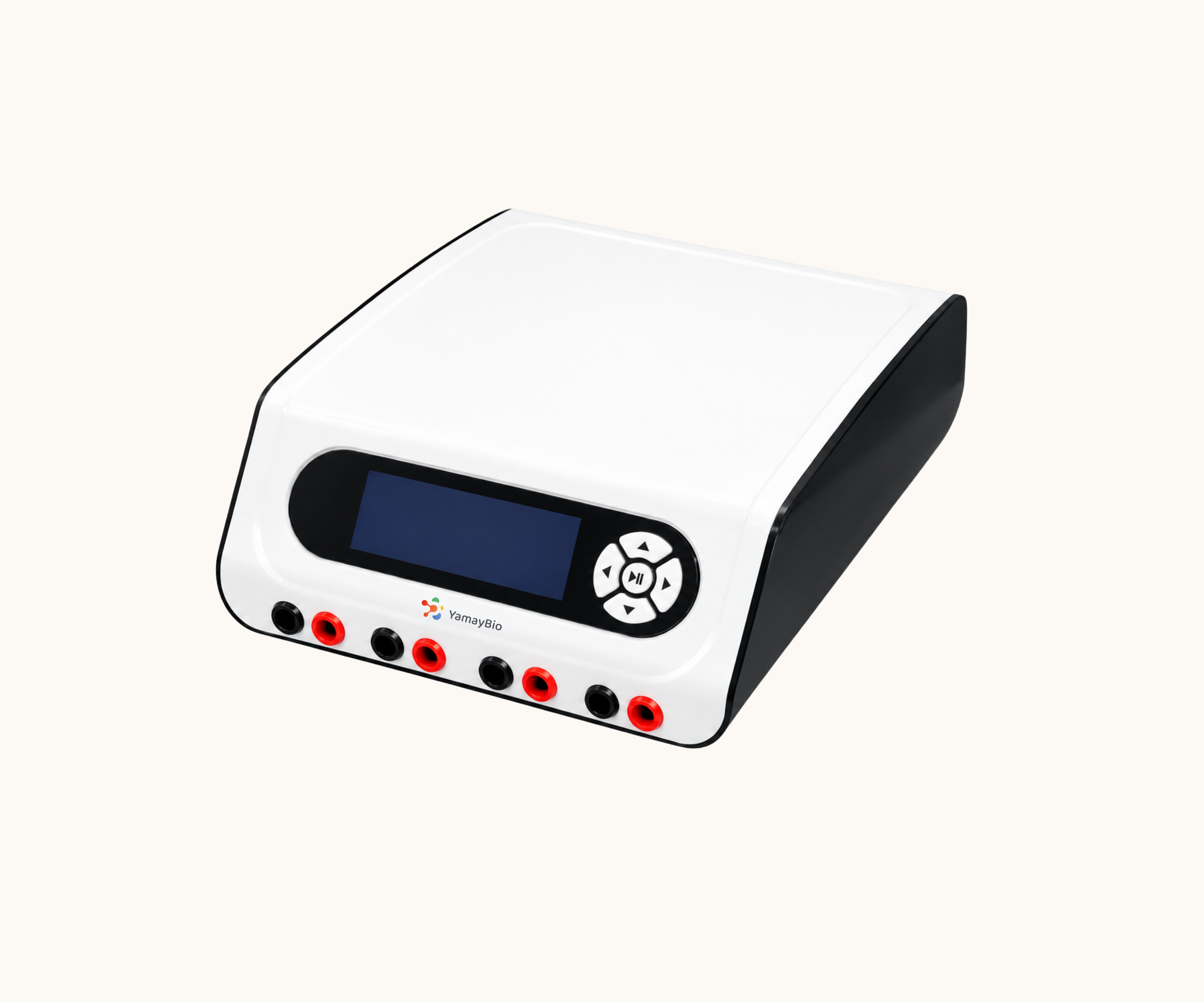

Electrophoresis Power Supply Series
The Electrophoresis Power Supply is an instrument that delivers a regulated electrical current to the electrophoresis cell during a gel electrophoresis experiment. The product consists of the main power supply unit and a power cord. The Electrophoresis Power Supply utilizes microcomputer and switch technology to ensure precise control of output parameters. Main features include time-fixed or manual operation, stable voltage output, short circuit protection, and load-oriented voltage output. It is suitable for both nucleic acid and protein gel electrophoresis. Read more
The Electrophoresis Power Supply is an instrument that delivers a regulated electrical current to the electrophoresis cell during a gel electrophoresis experiment. The product consists of the main power supply unit and a power cord. The Electrophoresis Power Supply utilizes microcomputer and switch technology to ensure precise control of output parameters. Main features include time-fixed or manual operation, stable voltage output, short circuit protection, and load-oriented voltage output. It is suitable for both nucleic acid and protein gel electrophoresis.
Models
Basic Power Supply, BPS300 300 V · 400 mA · 75 W
High-Current Power Supply, HCPS3000 250 V · 3000 mA · 300 W
Universal Power Supply, BPS500 500 V · 2500 mA · 500 W
Features
1. Programmable one- or two-step methods
2. Flexible configuration between constant voltage output, constant current output, and constant power output
3. Time-set function, allowing for timed operation or manual start/stop
4. Automatic switching between constant voltage and constant current in case of exceeding set value
5. Automatic non-load detection
6. Automatic short circuit protection
7. Automatic recording of previous 10 settings
8. Skid-resistance for instrument stability

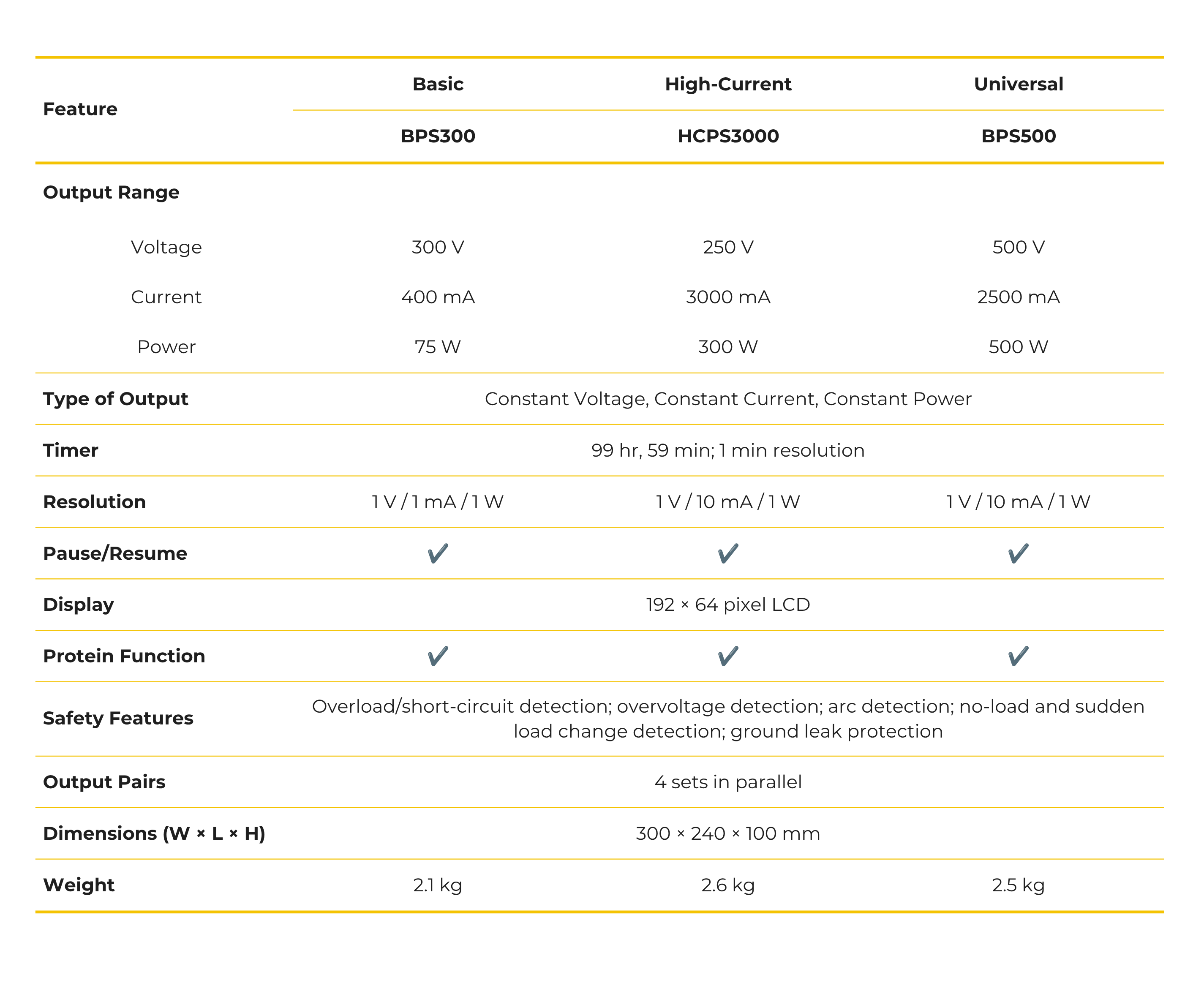

Comparison
Related Products
Consumables
Components of Electrophoretic Transfer Cell
Consumables
Components of Vertical Electrophoresis System
Consumables
Mini Trans-Blot Electrophoretic Transfer Cell
Product Code: MINIPTM2
Consumables
Mini Vertical Electrophoresis Cell
Product Code: MINIAVEC
Consumables
Mini Vertical Electrophoresis System
Product Code: MINI2075
Product Manual
Show more
Specifications
| Type of Output | Constant voltage, constant current, or constant power |
| Throughput | Four output terminals |
| Display | 192 × 64 LCD screen |
| Timer | 1 min–99 hr, 59 min; 1 min resolution |
| Input | 98-242V AC/50-60Hz |
